LedgeRock®

LedgeRock® Commercial Retaining Wall units are heavy-duty, versatile, cost-effective big blocks designed for the landscape or commercial contractor. The unique faces can be stained with solid or blended colors after installation, which allows the installer to create fluid, aesthetic color to complement any application. Additionally, these units are designed to create walls up to 10′ without grid reinforcement and much higher with the aid of reinforcement.

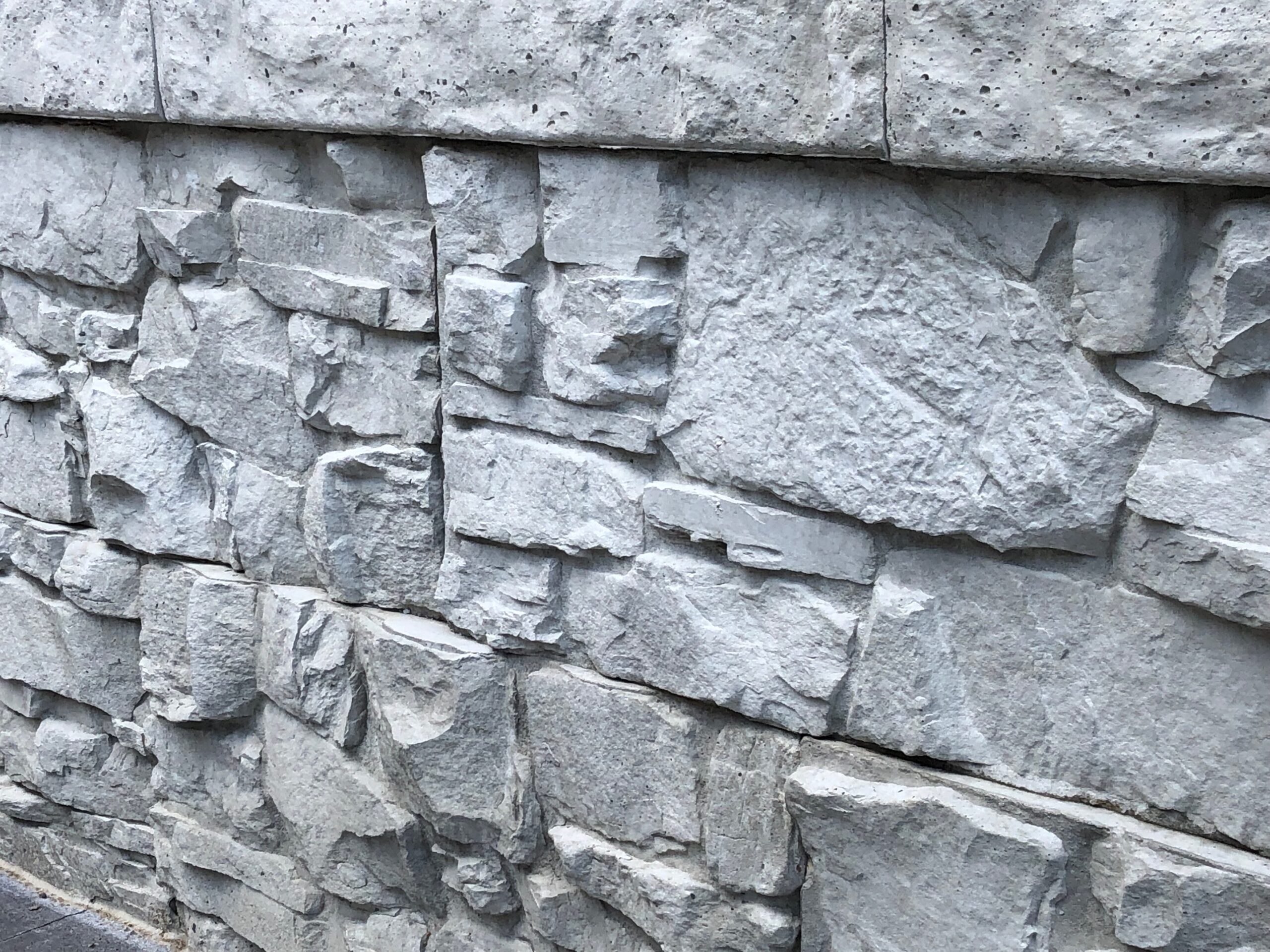

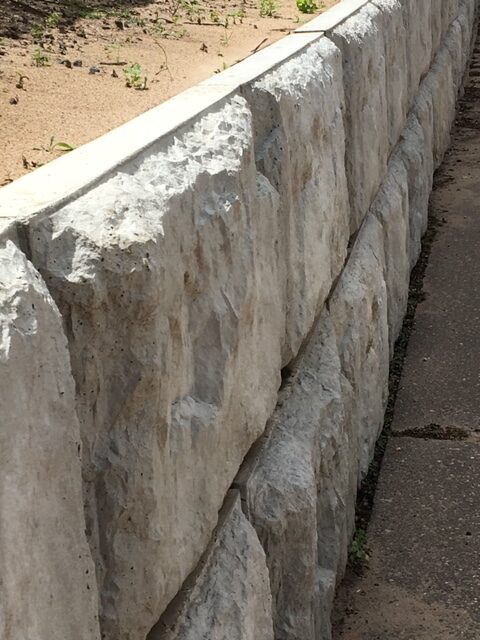

Available in two faces: Quarried Limestone and North Shore Boulder.

MNDOT Phase II List of Approved Block

Now approved for MNDOT Phase I & Phase II projects! Please contact your local sales representative for more information!

Printable InfoPhotos
NameApprox. Dimensions
(H″xD″xL″)		Weight
(Lb.)		Pallet Qty.Pallet Wt.
(Lb.)		Approx. Coverage
(Sq. Ft.)		Setback

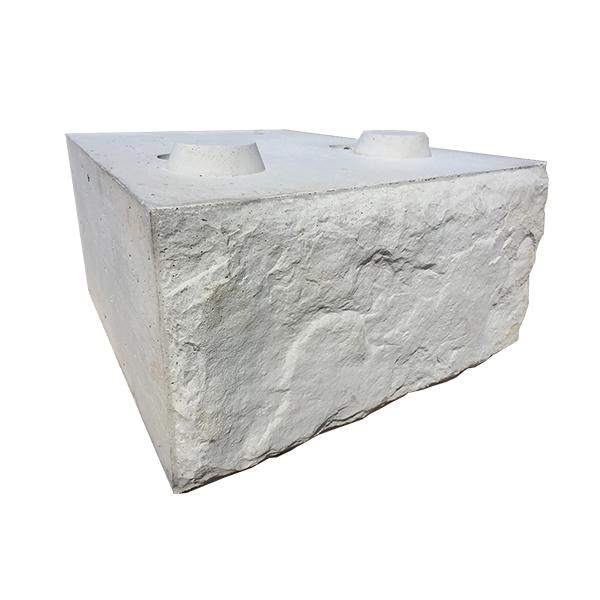

Base Block24x52x4844001444082″/course

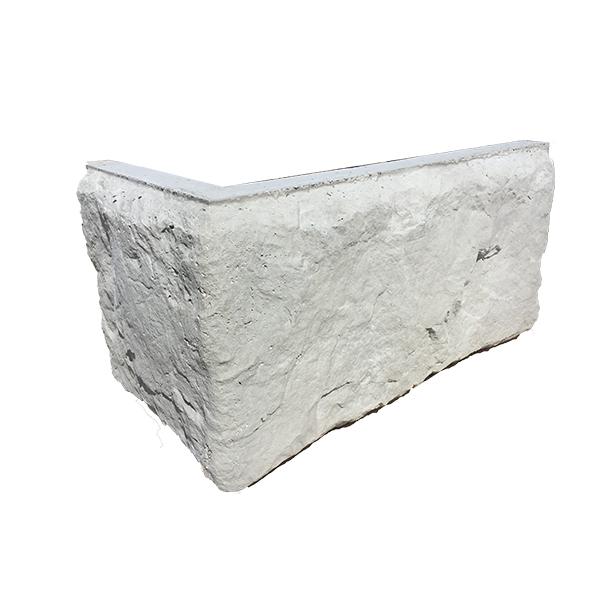

Corner Recess24x28x52230612346122″/course

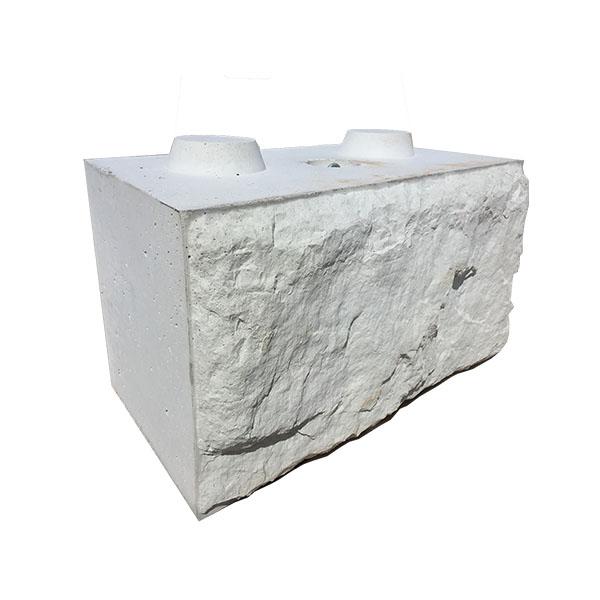

Key Block24x28x442258122987⅓2″/course

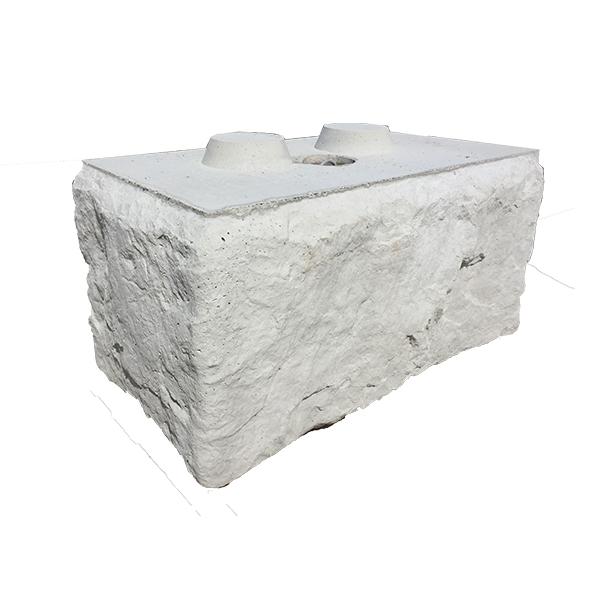

Corner Block24x28x52271712757122″/course

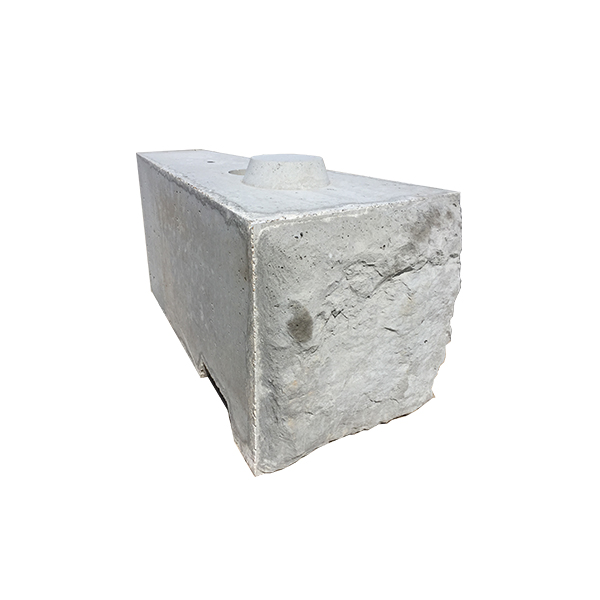

Half Base24x52x2418902382042″/course

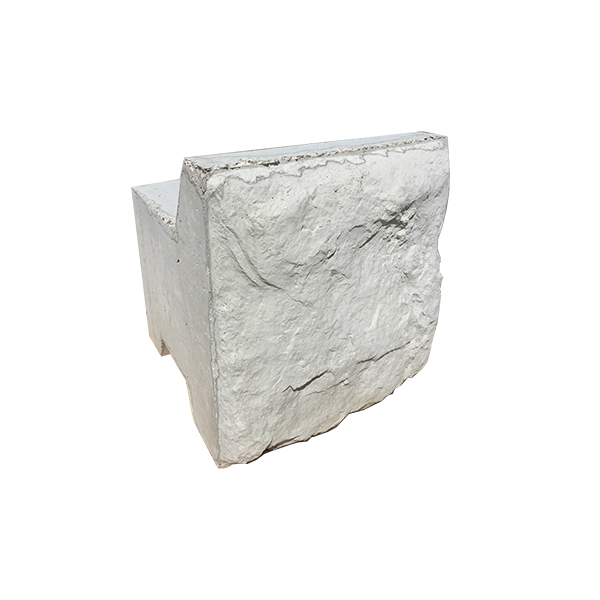

Half Recess24x24x289662197242″/course

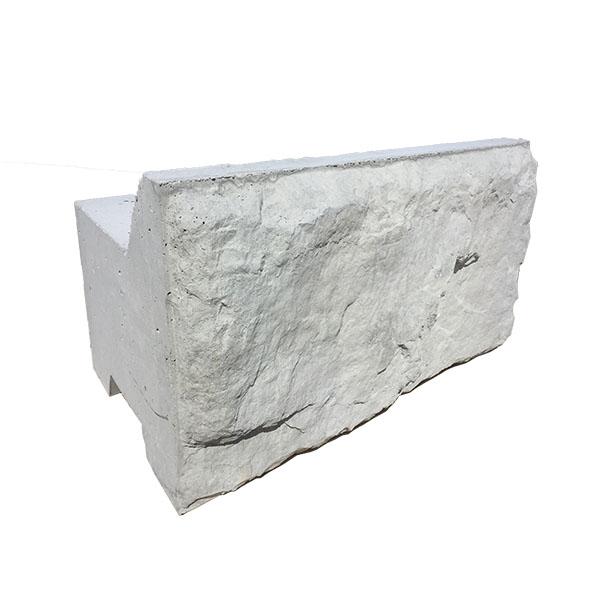

Key Recess24x28x442040120807⅓2″/course

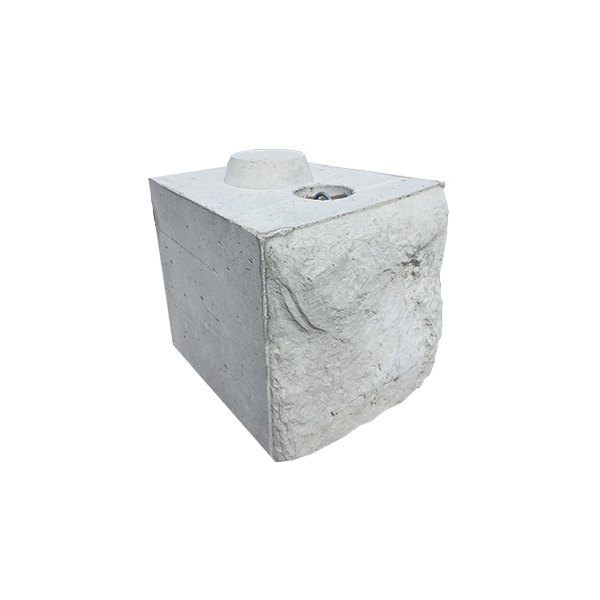

Half Block24x28x2411732238642″/course

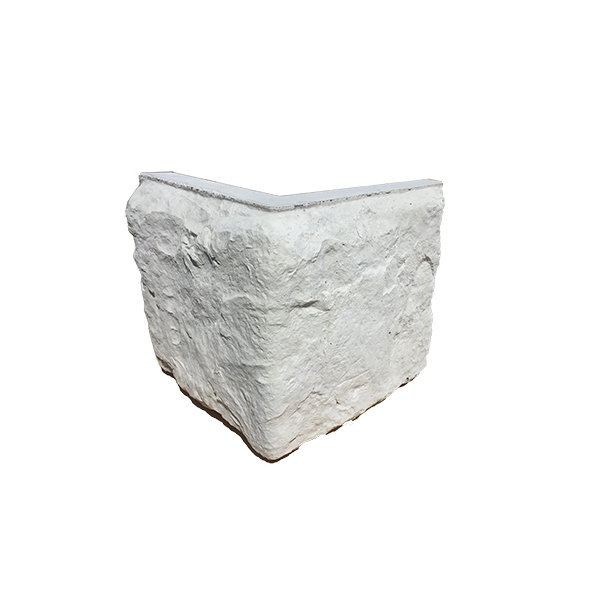

Corner Half Recess24x28x2812892261882″/course

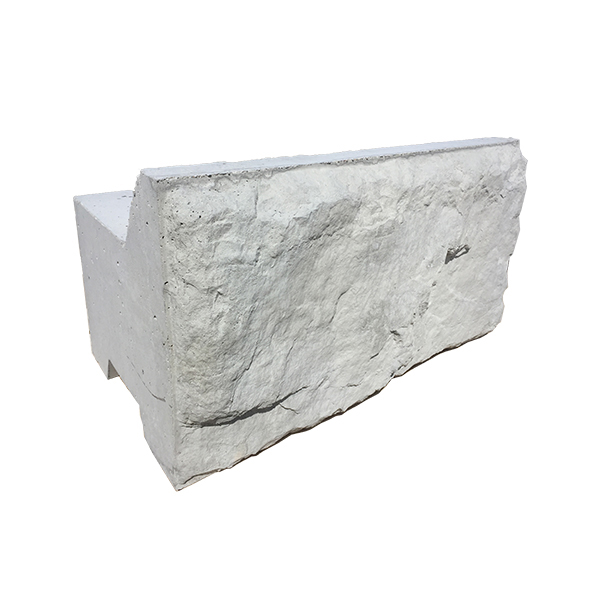

Full Recess24x28x4820251206582″/course

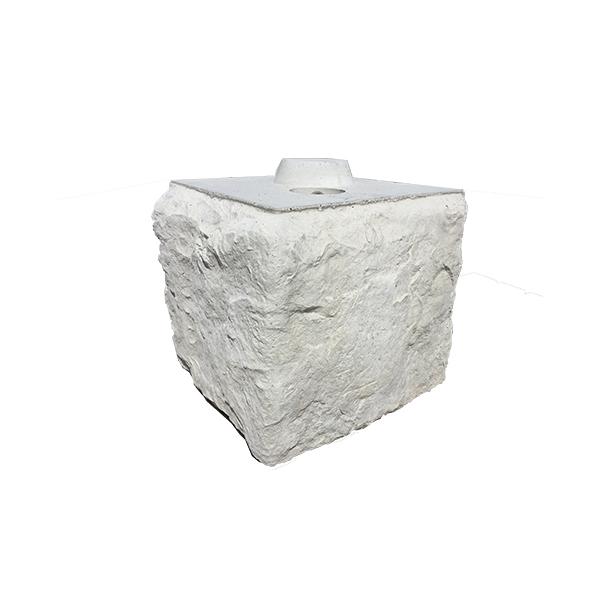

Corner Half Block24x28x2814062285282″/course

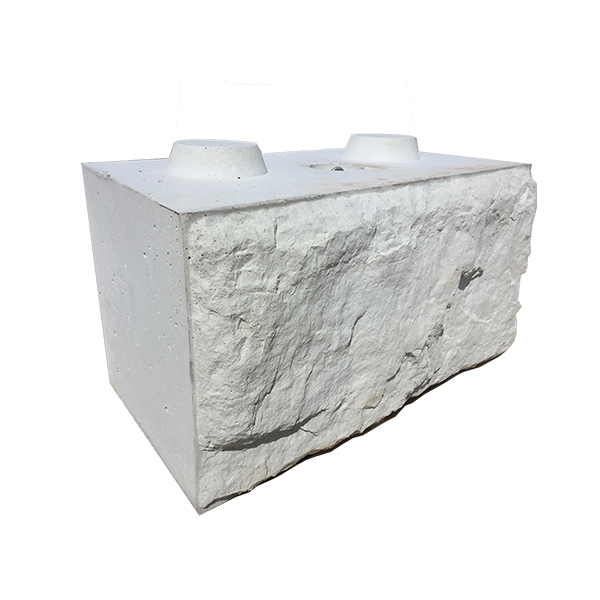

Full Block24x28x4824741251482″/course
**Product production varies by plant. Please contact your salesperson for product availability in your location**
