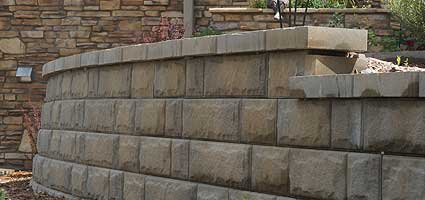

The AB Fieldstone Collection® by Allan Block utilizes a two-piece system including interchangeable facing and anchoring units. Additionally, it offers the flexibility of short anchoring units (SAU) or long anchoring units (LAU) which attach to the various face styles and can be used for parapet walls when used with the Dog Bone anchoring unit.
| Name | Approx. Dimensions (H″xD″xL″) | Weight (Lb.) | Pallet Qty. | Pallet Wt. (Lb.) | Approx. Coverage (Sq. Ft.) | Setback | |
|---|---|---|---|---|---|---|---|

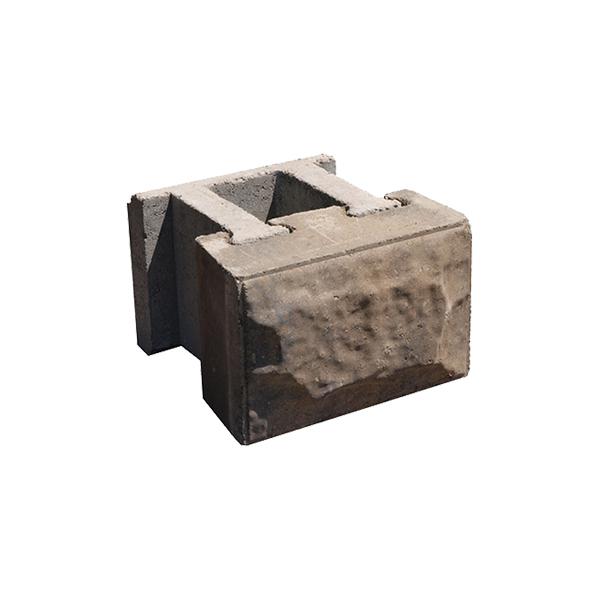

 | 812 Face w/ SAU | 8×12¼x12 | 62 | 100/96 | 3040/3112 | 0.7 | 6° |

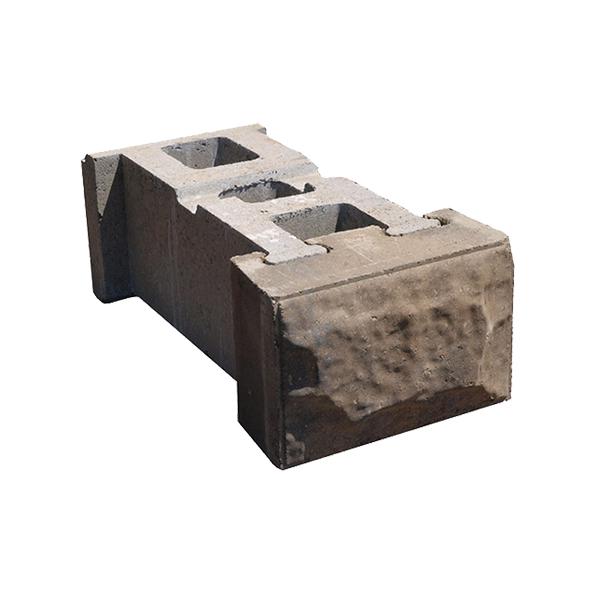

 | 812 Face w/ LAU | 8×12¼x23 | 102 | 100/96 | TBD | 0.7 | 6° |

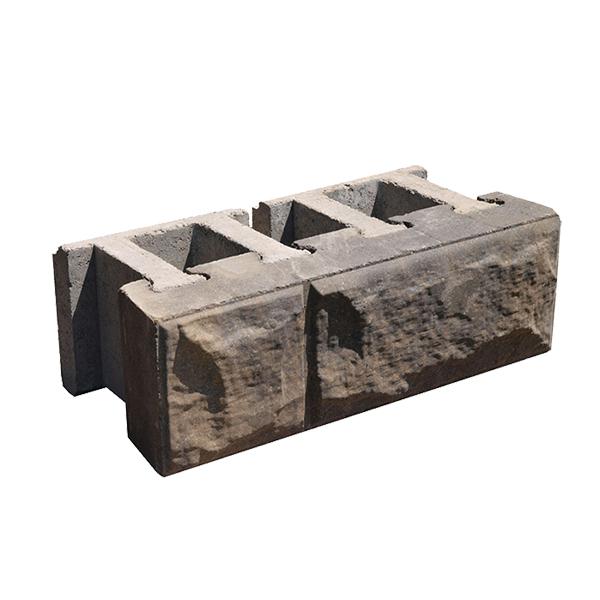

 | 824 Face w/ SAU | 8x24x12 | 94 | 50/96 | 3140/3112 | 1.3 | 6° |

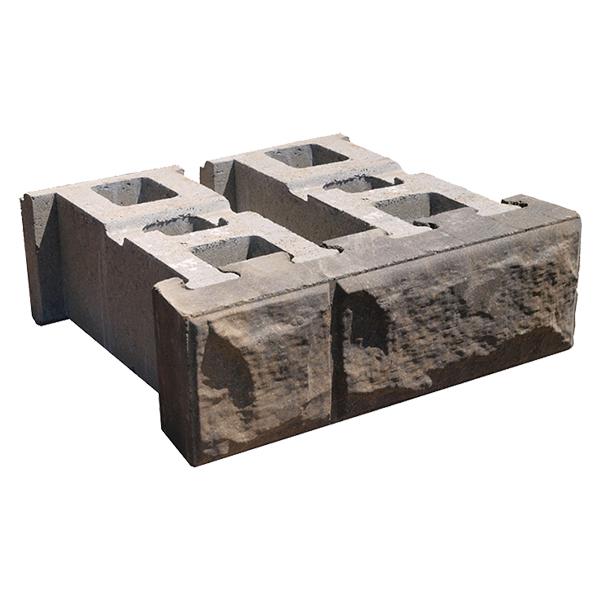

 | 824 Face w/ LAU | 8x24x23 | 134 | 50/96 | TBD | 1.3 | 6° |

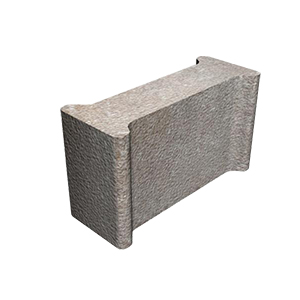

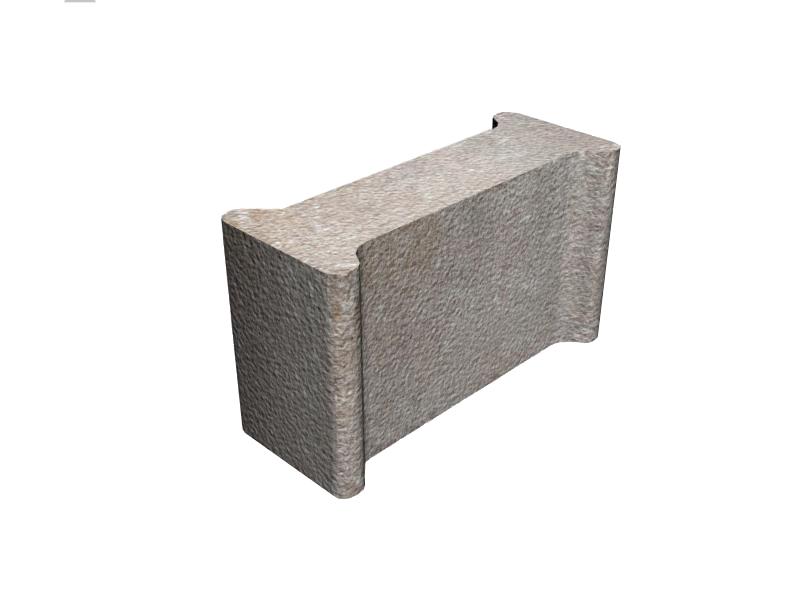

 | Dog Bone | 3¾x7x2⅝ | 4 | 336 | 1452 | – | – |

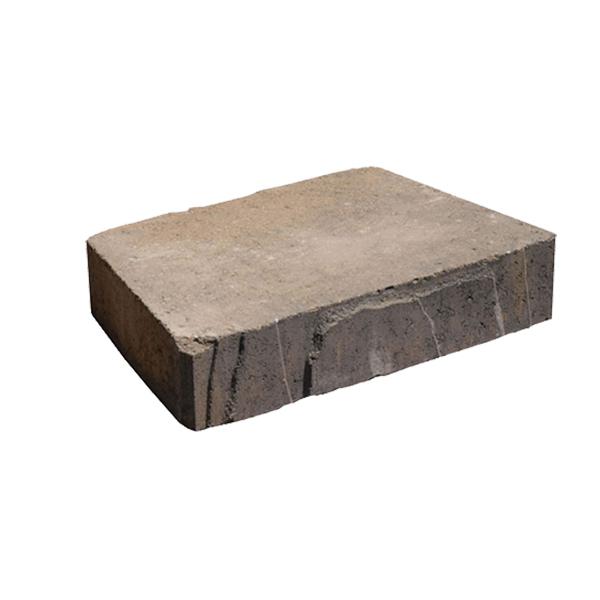

 | AB Fieldstone Cap | 3¾x11¾x16 | 50 | 48 | 2440 | 0.42 | – |
