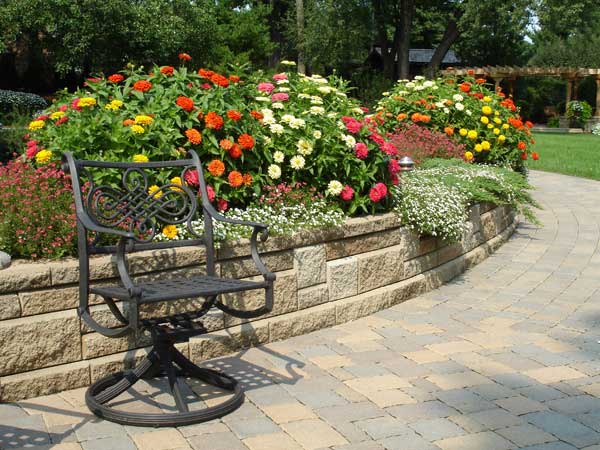

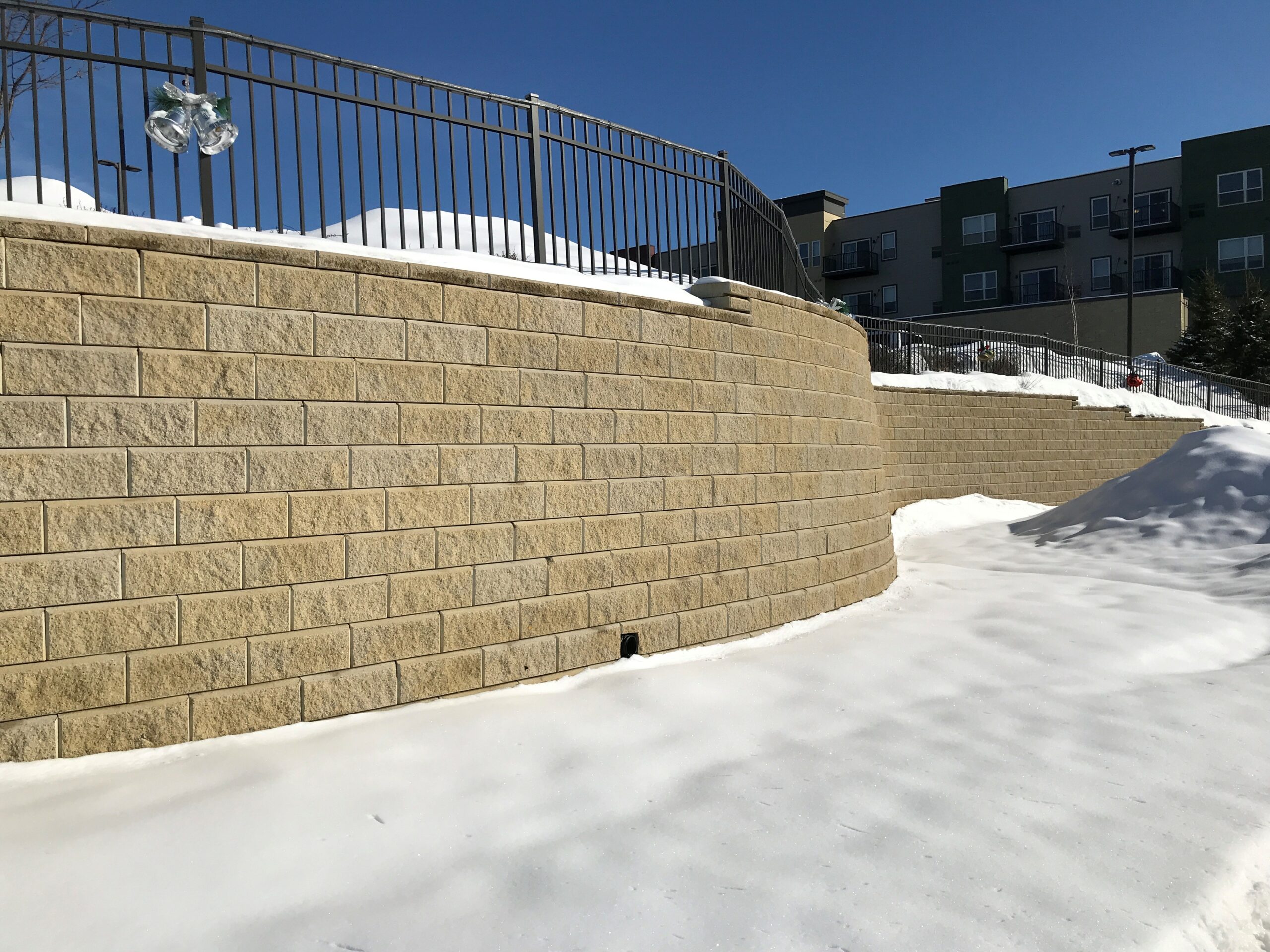

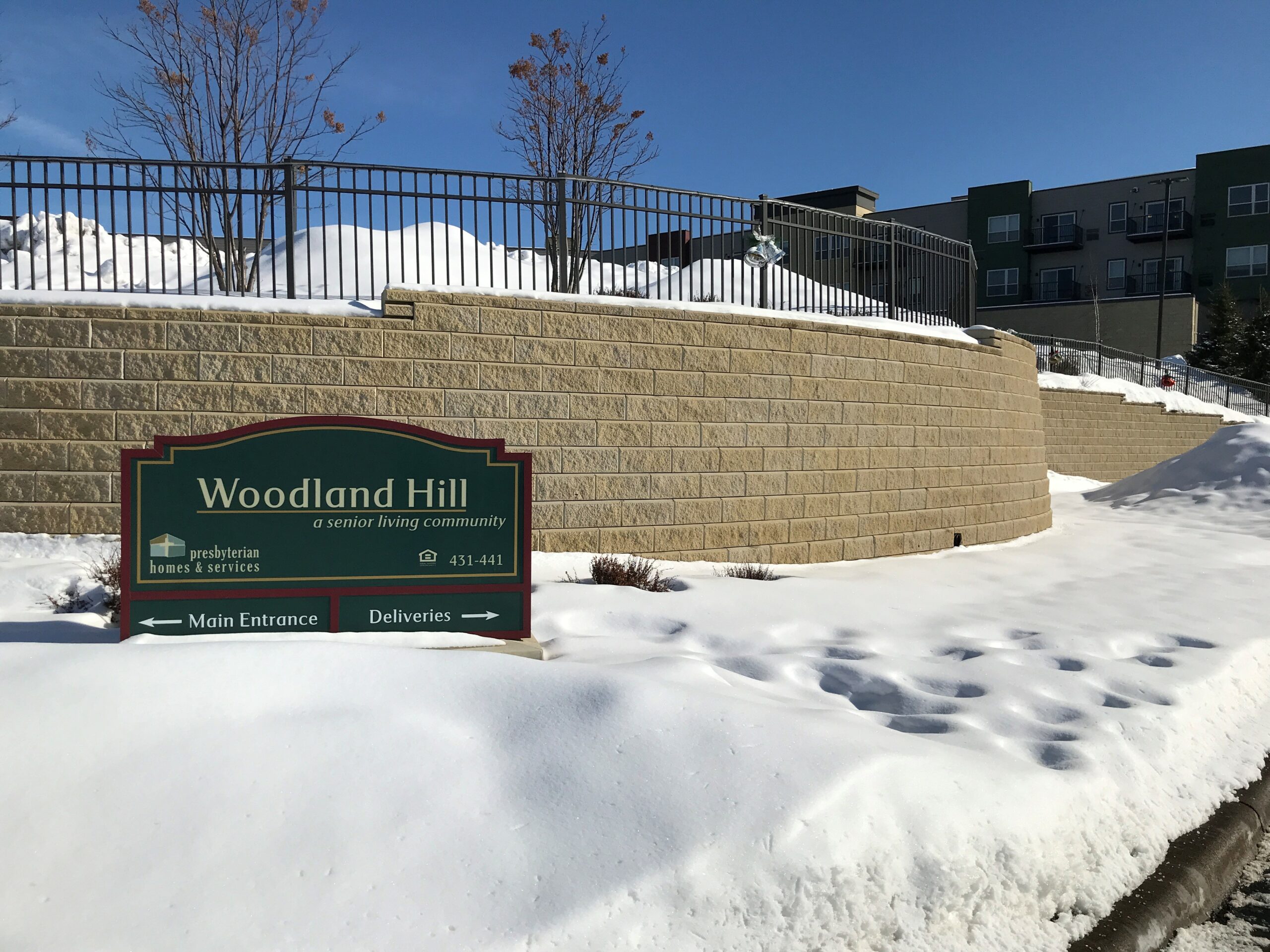

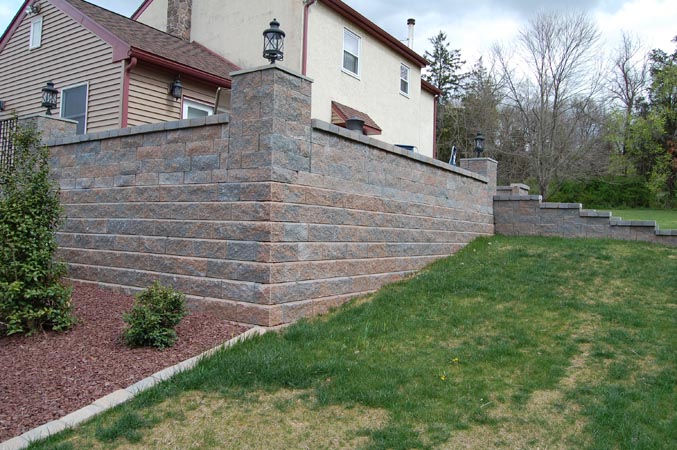

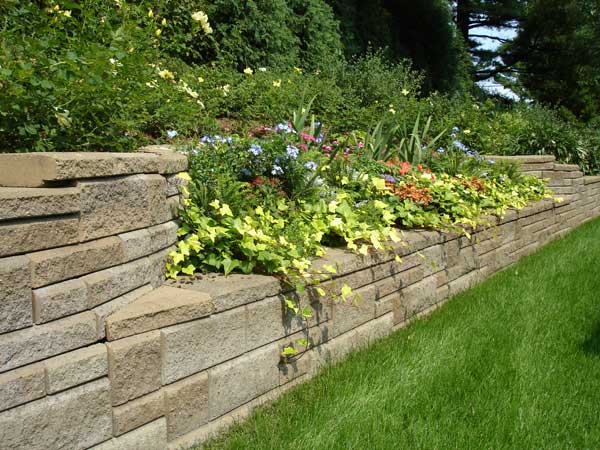

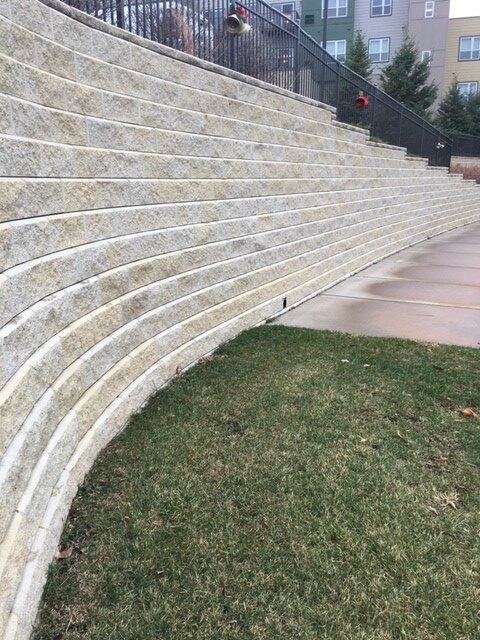

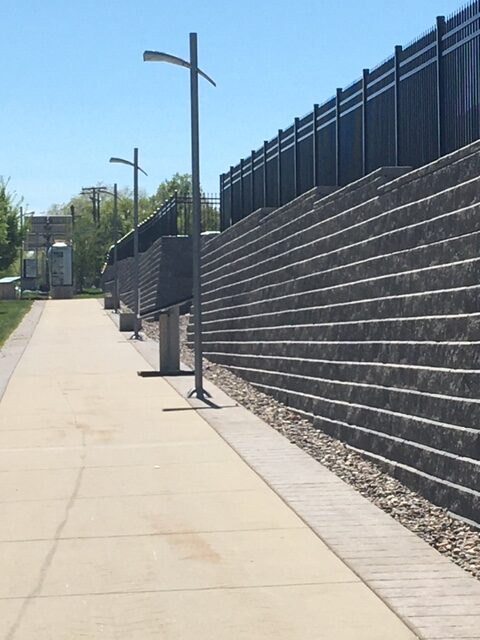

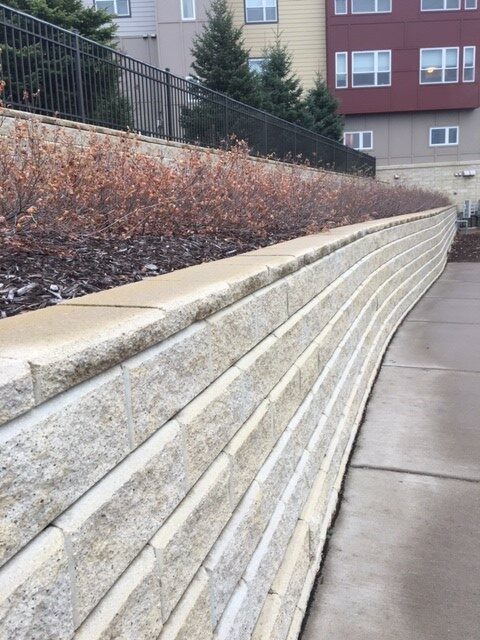

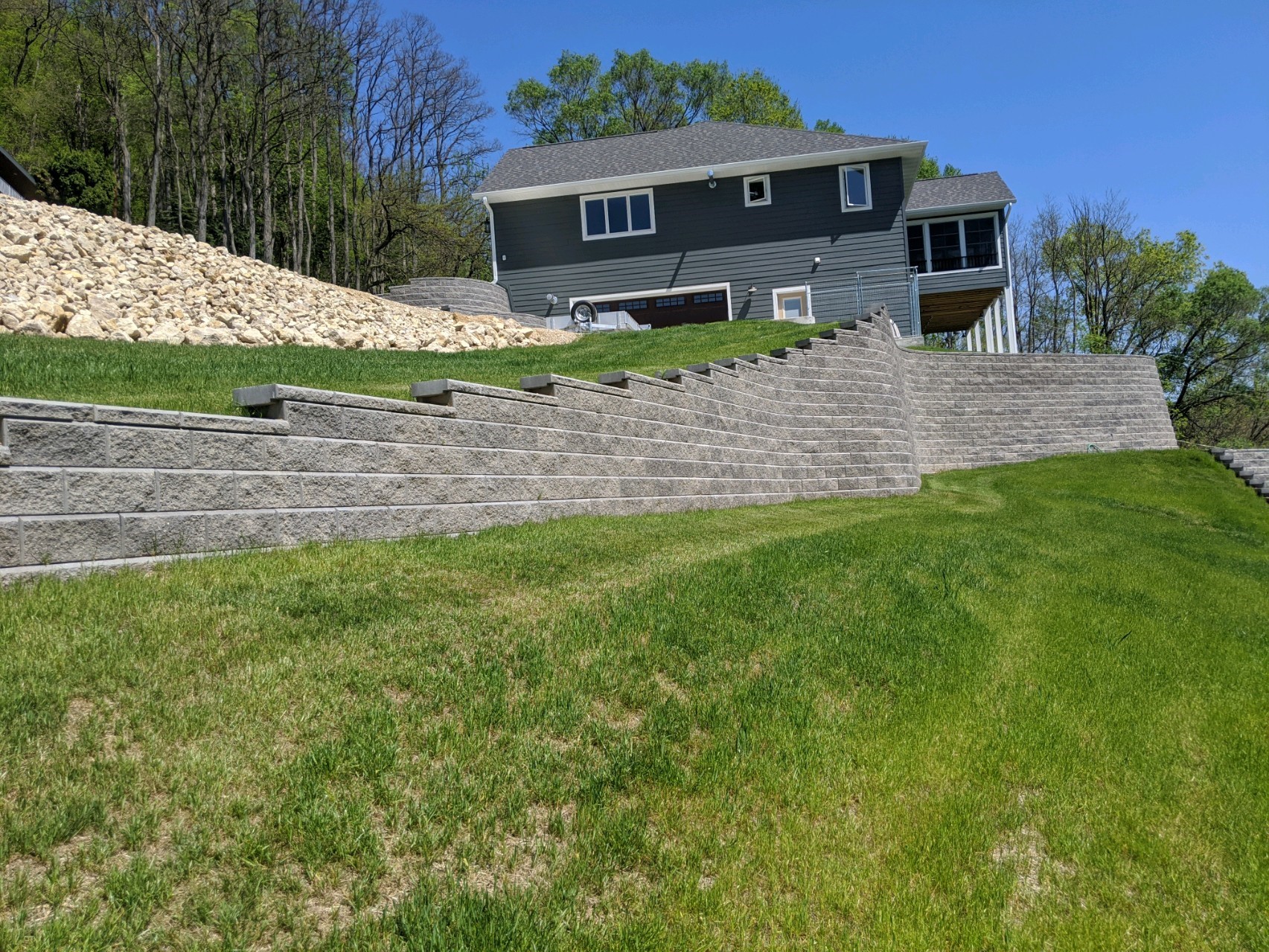

The AB® Collection by Allan Block is a classic-cut rockface segmental retaining wall designed for strength and priced to be competitive. With a variety of setbacks and color options, this collection meets the needs of contractors, specifiers, developers, and homeowners alike on virtually any size project. Select one size for a classic look or mix sizes to give your project more dimension.
| Name | Approx. Dimensions (H″xD″xL″) | Weight (Lb.) | Pallet Qty. | Pallet Wt. (Lb.) | Approx. Coverage (Sq. Ft.) | Setback | |
|---|---|---|---|---|---|---|---|

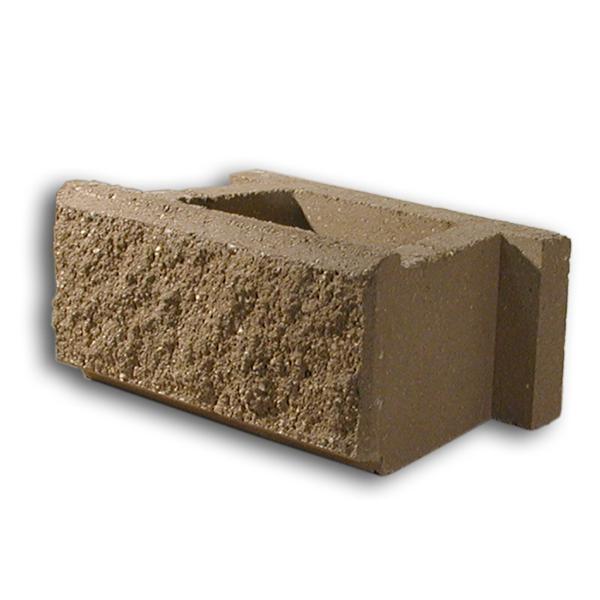

 | AB Classic | 7⅝x11⅞x17⅝ | 79 | 32 | 2568 | 1 | 6° |

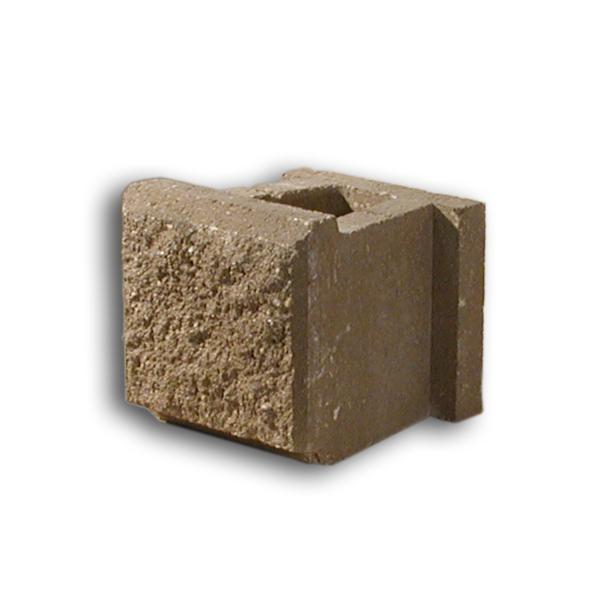

 | AB Junior | 7⅝x9½x813∕16 | 35 | 80 | 2840 | 0.5 | 6° |

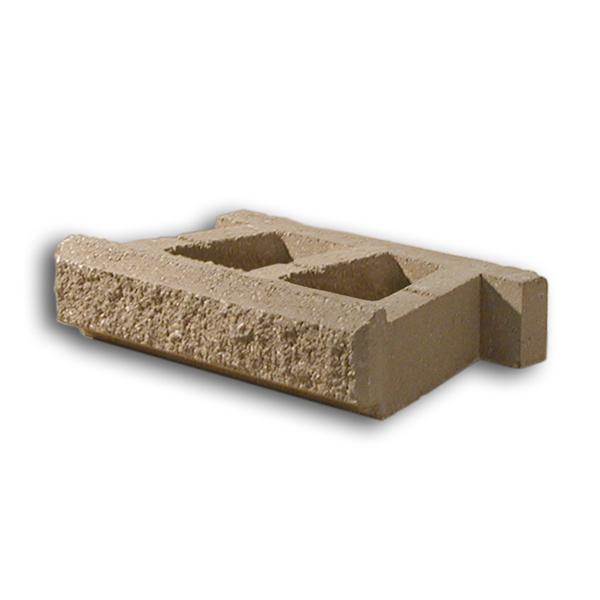

 | AB Lite | 313∕16×11⅞x17⅝ | 42 | 64 | 2728 | 0.5 | 6° |

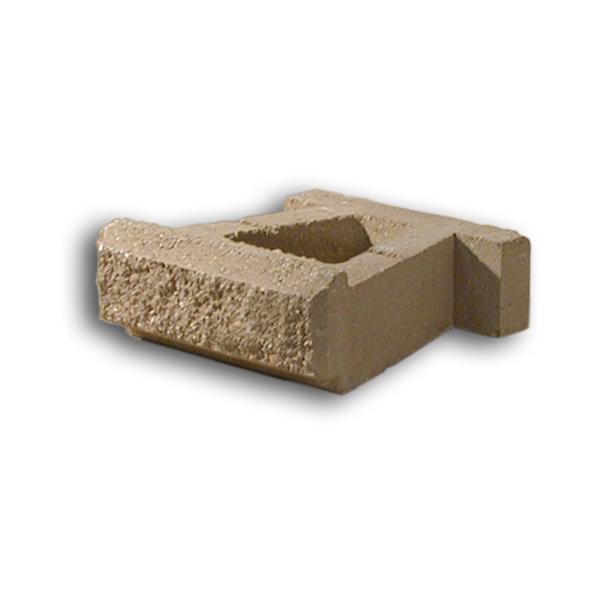

 | AB Half Lite | 313∕16×9½x813∕16 | 23 | 128 | 2984 | 0.25 | 6° |
 | AB Stone | 7⅝x11⅞x17⅝ | 79 | 32 | 2568 | 1 | 12° |

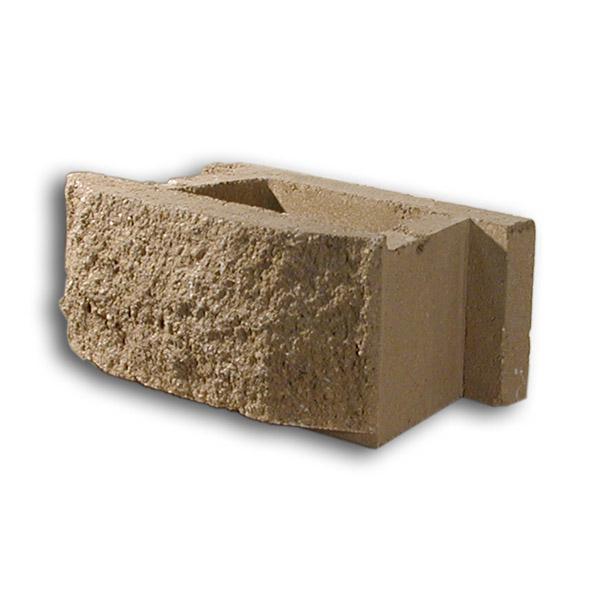

 | AB Rock | 7⅝x11⅞x17⅝ | 75 | 32 | 2440 | 1 | 6° |

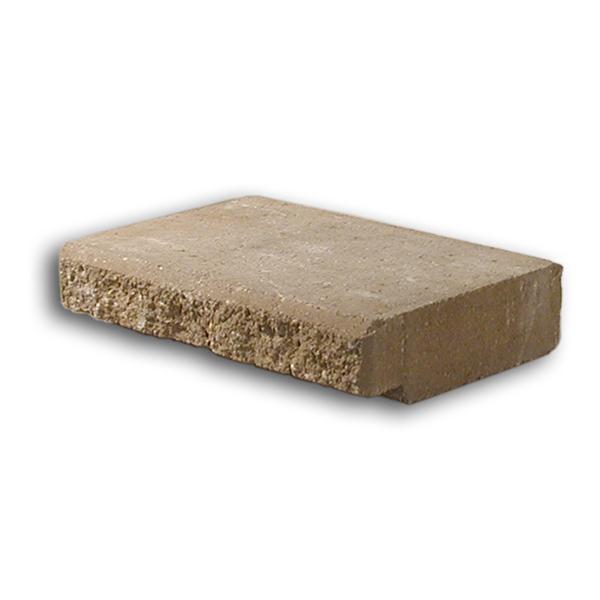

 | AB Cap | 313∕16×11⅞x17⅝ | 59 | 32 | 1928 | 0.5 | N/A |

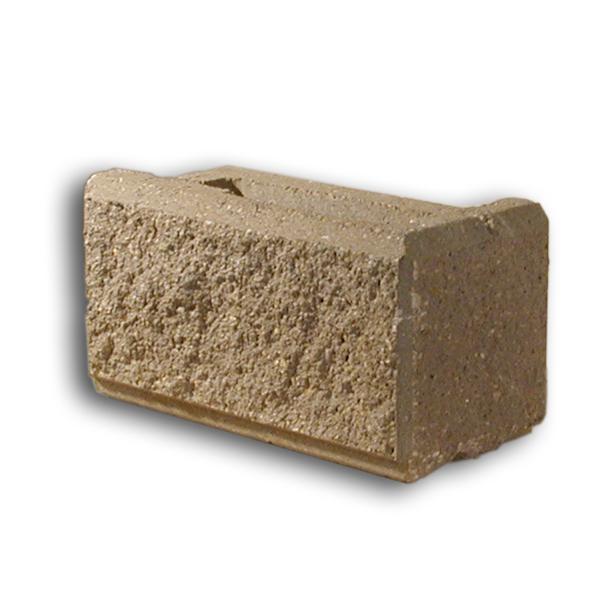

 | AB Corner | 7⅝x8x16 | 53 | 60 | 3220 | 1 | N/A |
 | AB Vertical | 7⅝x11⅞x17⅝ | 79 | 32 | 2568 | 0.5 | 3° |
